See here for some pictures of how things were. before I started.

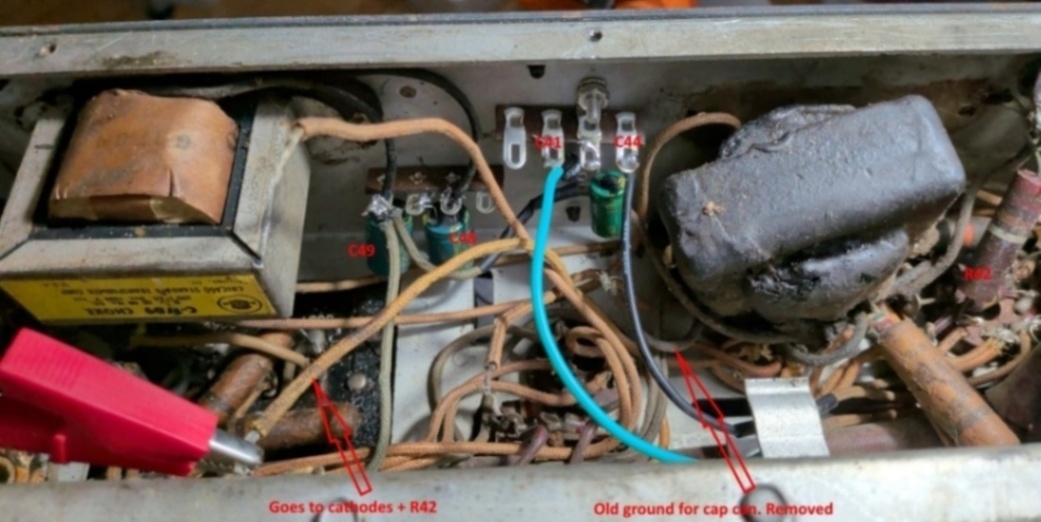

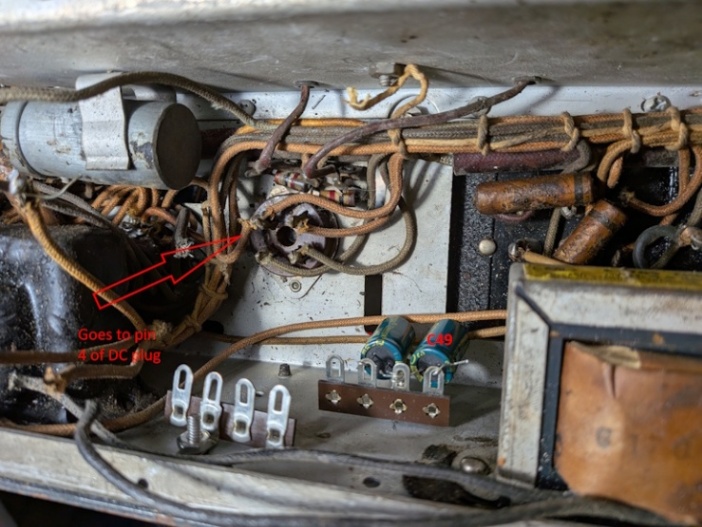

I removed the cap cans, tape and all, and the metal clips and installed terminal strips. It still amazes me
that the two green mylar electrolytic caps are the same rating as the big cans.
Took it one step at a time and added stuff as needed.

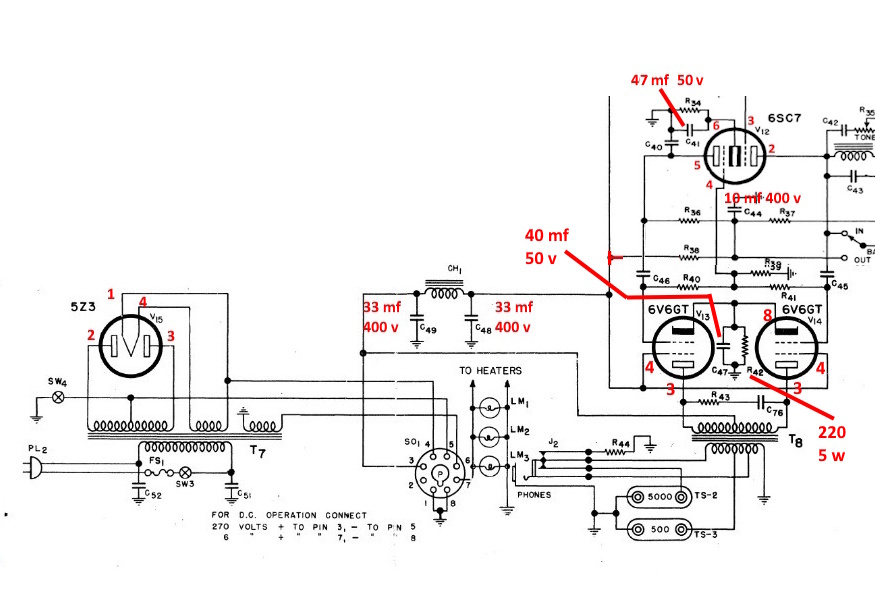

My working schematic. This is from an A model but I don't think there's much difference. The values in red are sometimes a
bit different than the parts list.
