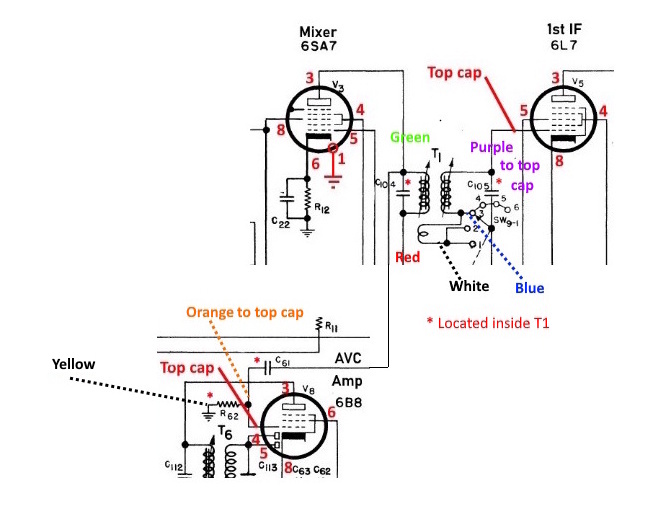

Note: Any wire colors shown are my wire colors, not the original.
See resistance tables.
See under chassis wiring.

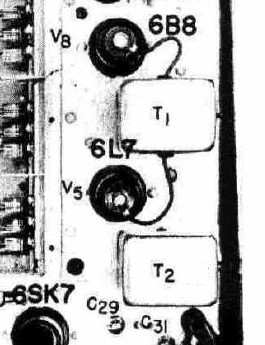

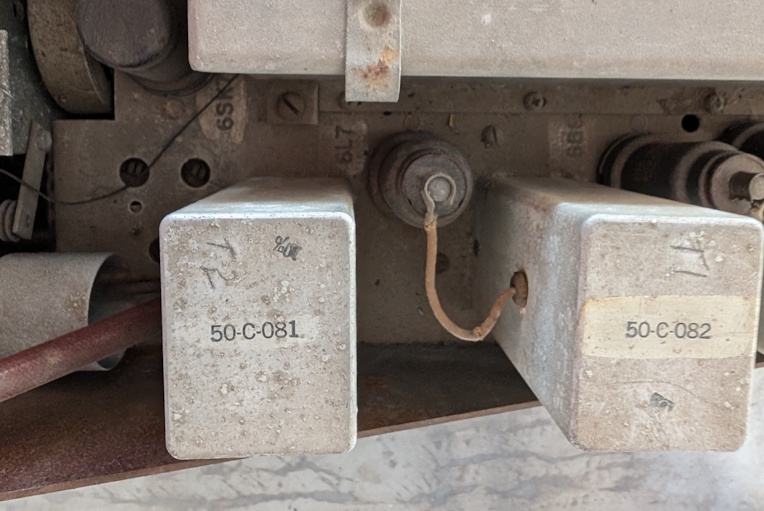

T1 is the first IF transformer. It has two top-cap connections coming out of the sides of the can. It connects the mixer (V3) with the first IF amp (V5).
When I rewired these transformers, I discovered that
A. none of them used the same wire colors and
B. most of the wires had faded to a muddy, stinky brown.
I assigned my own colors using 22 ga silicone wire. I kept the colors the same on all the T1 transformers I rewired.
