Notes on T10

T10 is for band 4 in the 1st RF module.

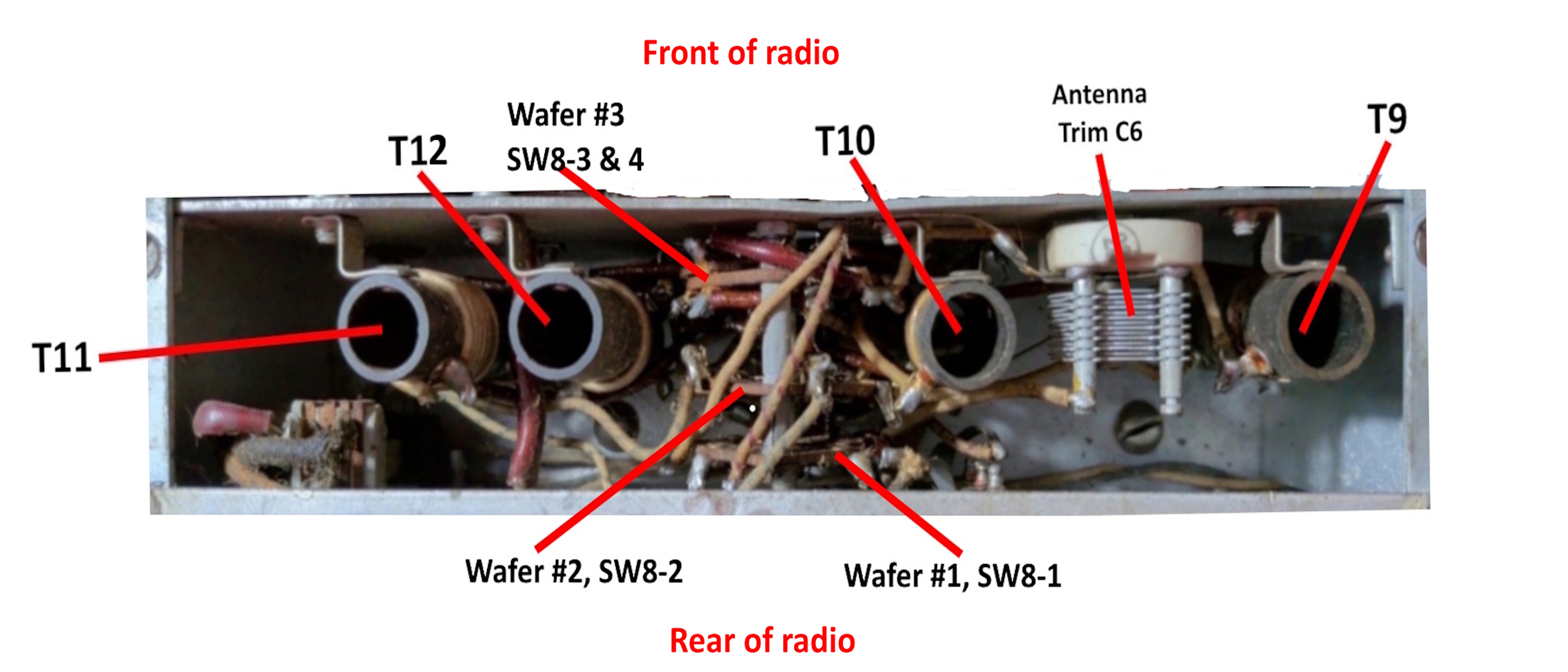

Early Radio, Round Coils

2 Wafer

3 Wafer

Stamped with part number 51284. I don't have a parts list for the early radios that give anything other than resistors and capacitors.

A diagram identifies this coil as "B3-S4"

		A to B: 0.29 ohm
		C to D: 29.70

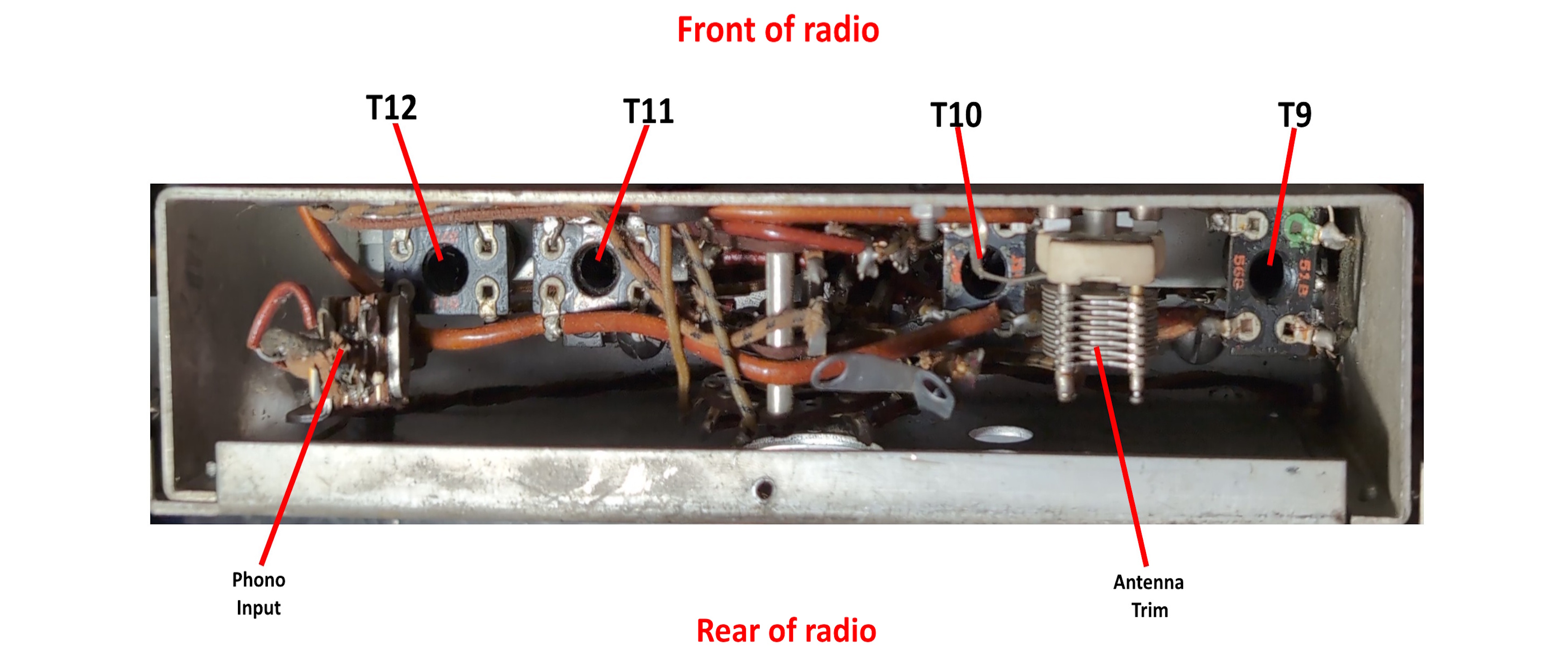

Late Radio, Square Coils

Stamped with part number _______.

NOT PHOTOGRAPHED YET

		Winding 1: _____ ohm
		Winding 2: _____
