Notes on T19

T19 is for band 1 in the mixer.

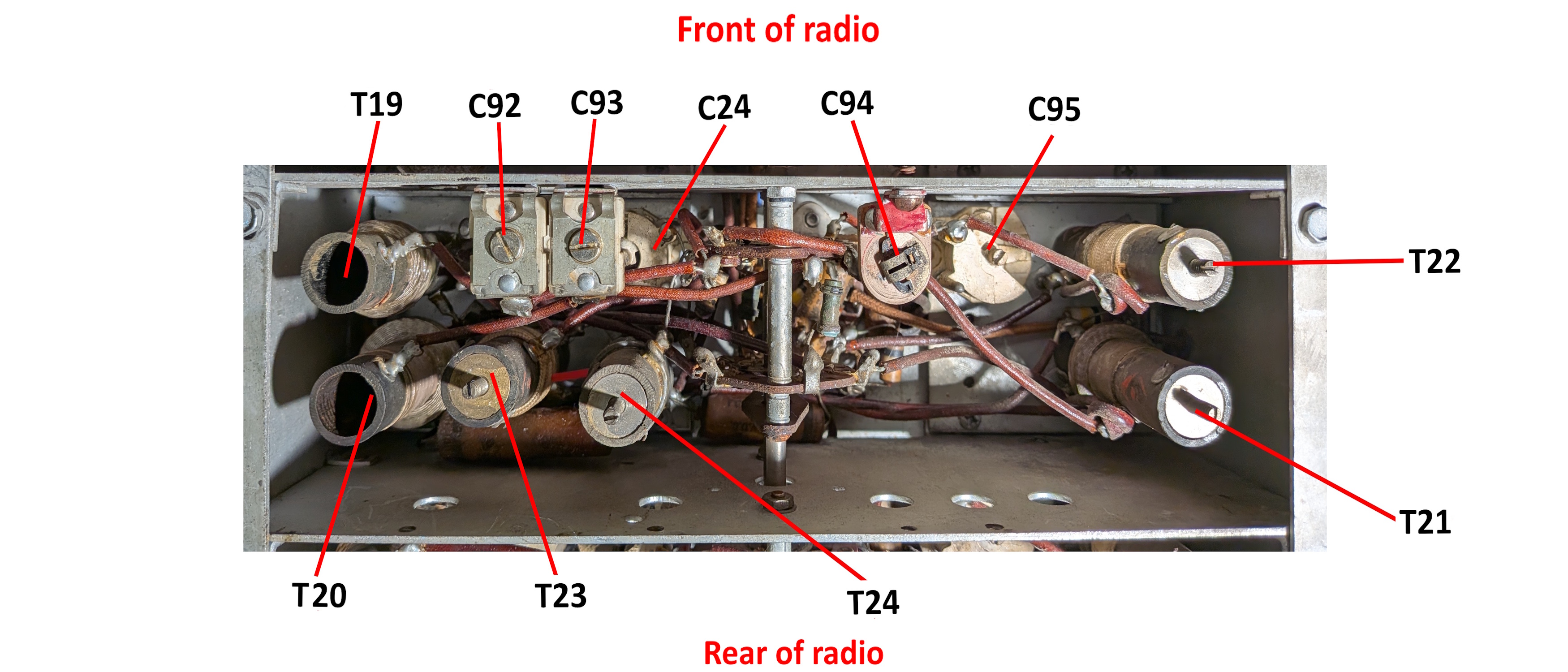

Early Radio, Round Coils

Stamped with part number 51284. I don't have a parts list for the early radios that give anything other than resistors and capacitors.

A diagram identifies this coil as "_____"
Letters are for table below only.

		A to B: 0.26 ohm
		C to D: 28.4

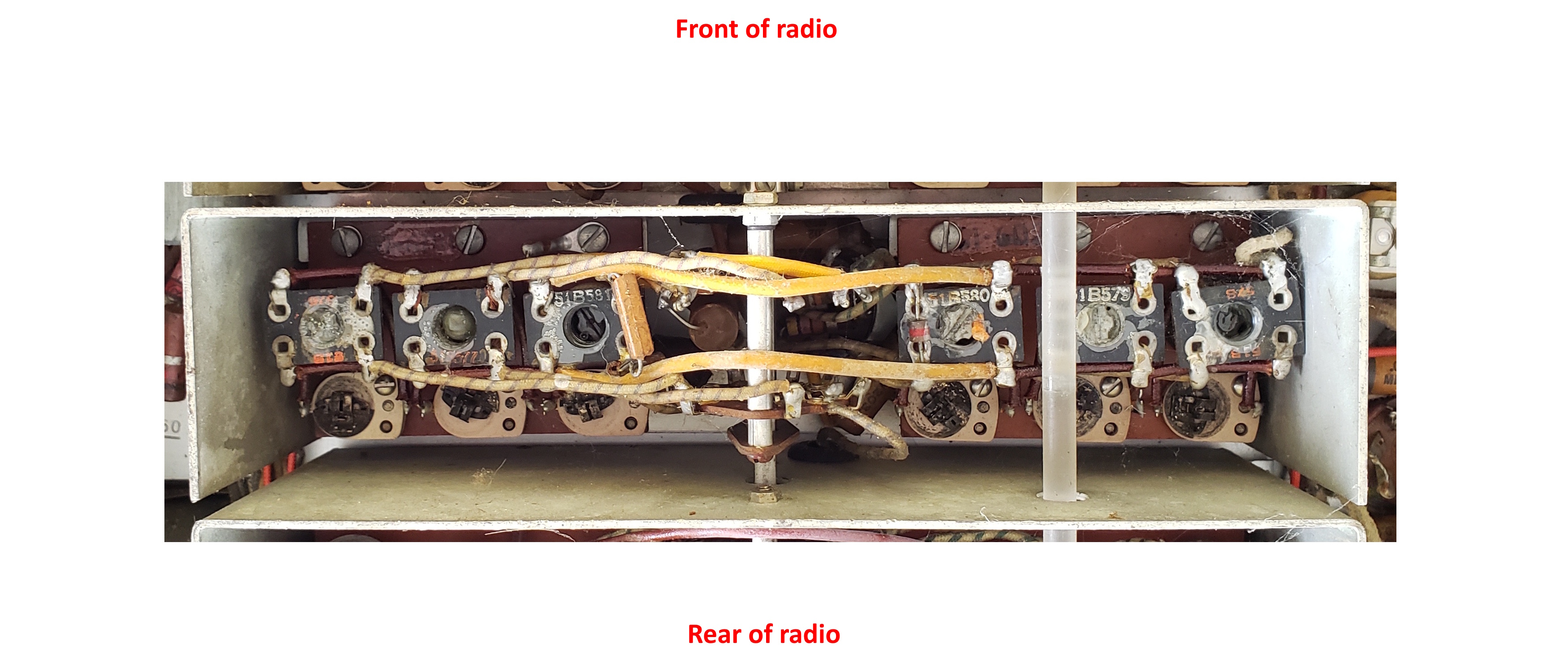

Late Radio, Square Coils

Stamped with part number _______.

NOT PHOTOGRAPHED YET

		Winding 1: _____ ohm
		Winding 2: _____
