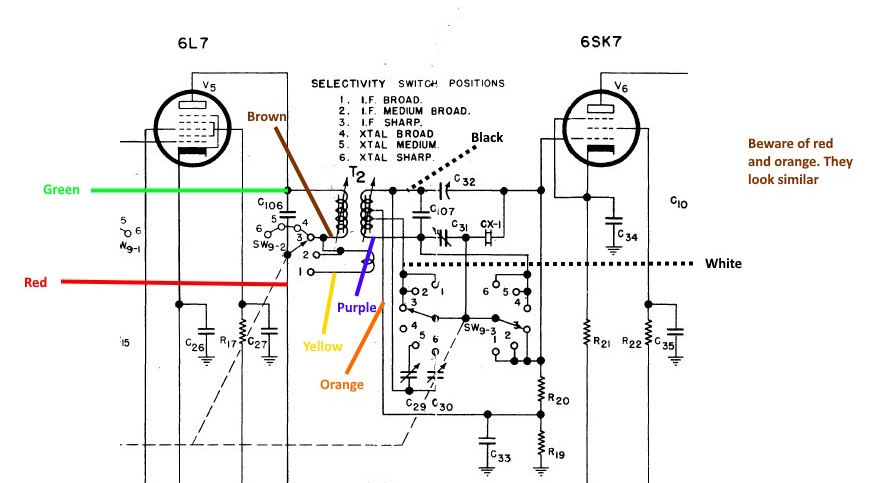

Note: Any wire colors shown are my wire colors, not the original.
See resistance tables.
See under chassis wiring.

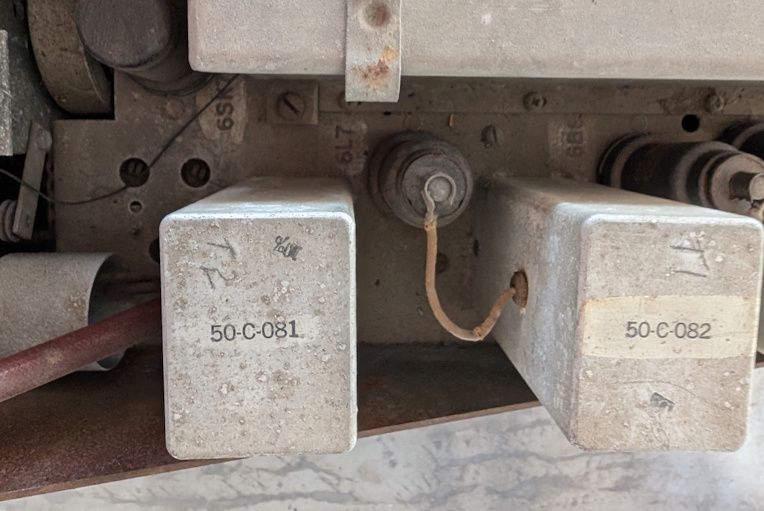

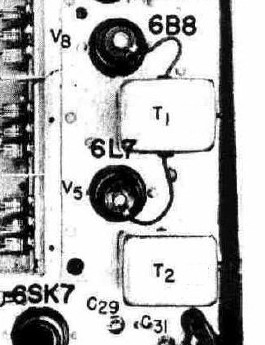

When I looked at these transformers, I discovered that
A. none of them used the same wire colors and
B. most of the wires had faded to a muddy, stinky brown.
I randomly assigned my own colors using 22 ga stranded silicone wire. I kept the colors the same on all the same-type transformers I rewired.
