Notes on T26

T26 is for band 2 in the oscillator.

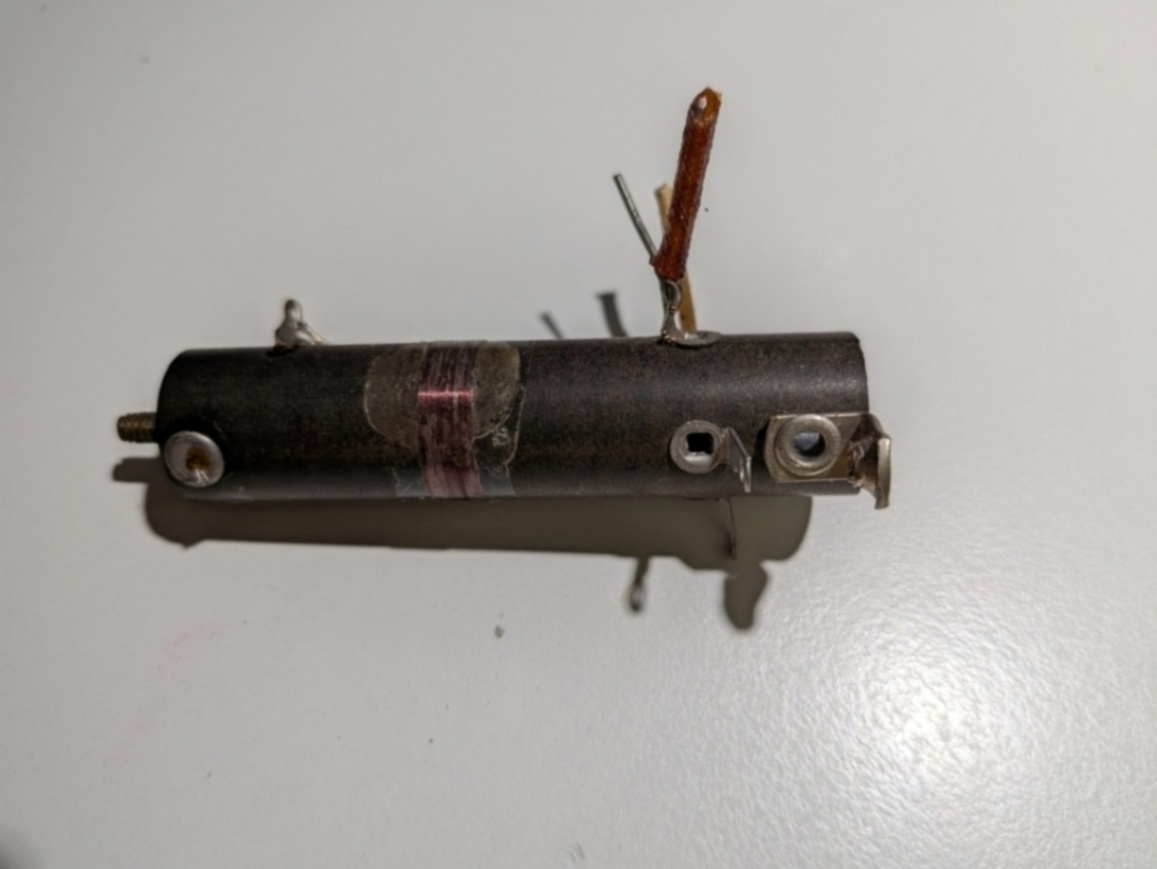

Early Radio, Round Coils

Calling this T26 is still being questioned.

Stamped with part number 51291. I don't have a parts list for the early radios that give anything other than resistors and capacitors.

A diagram identifies this coil as "B2-S2"

Letters are for table below only.

Resistance measurements made with 4-wire ohm meter.

		A to B (center tap): 2.15 ohm
		B to C: 0.67
		A to C: 2.84


Late Radio, Square Coils

Stamped with part number _______.

NOT PHOTOGRAPHED YET

		Winding 1: _____ ohm
		Winding 2: _____
