Notes on T9

T9 is for band 3 in the RF 1 module.

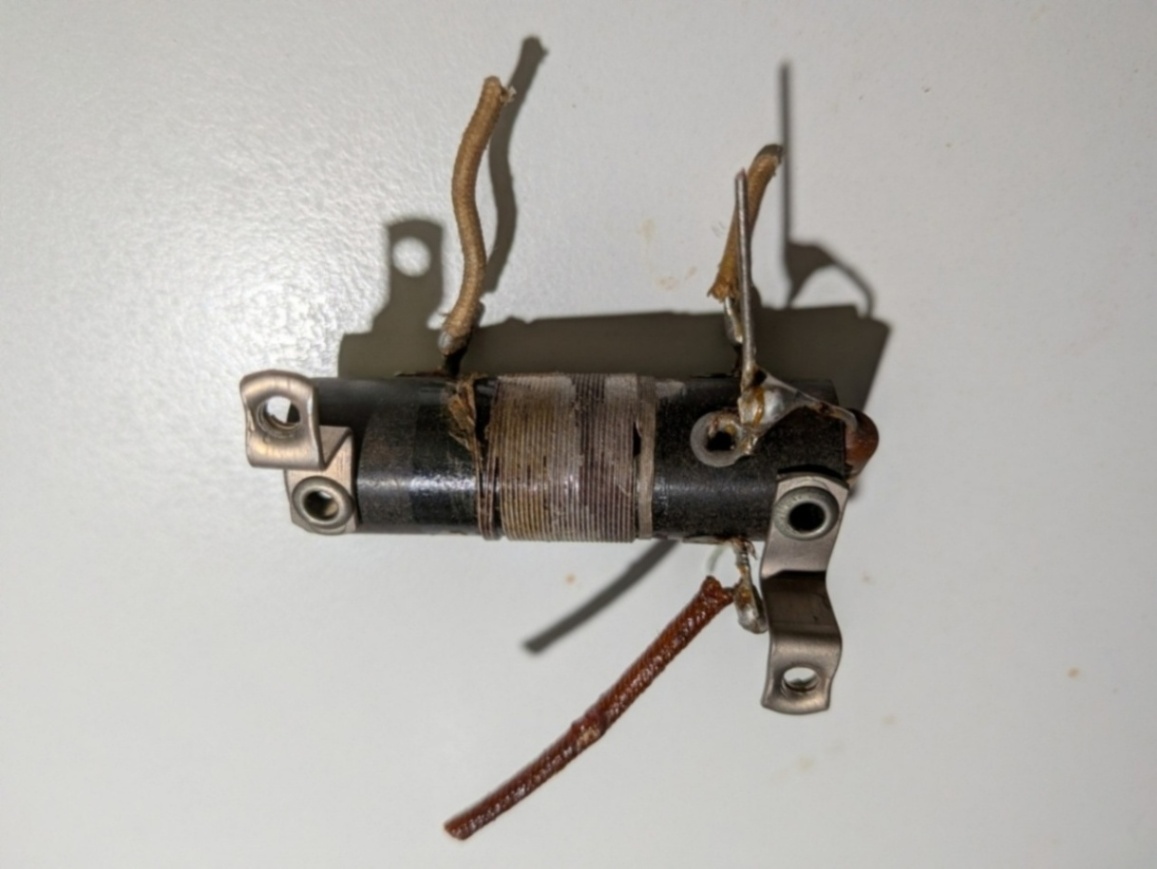

Early Radio, Round Coils

2 Wafer

3 Wafer

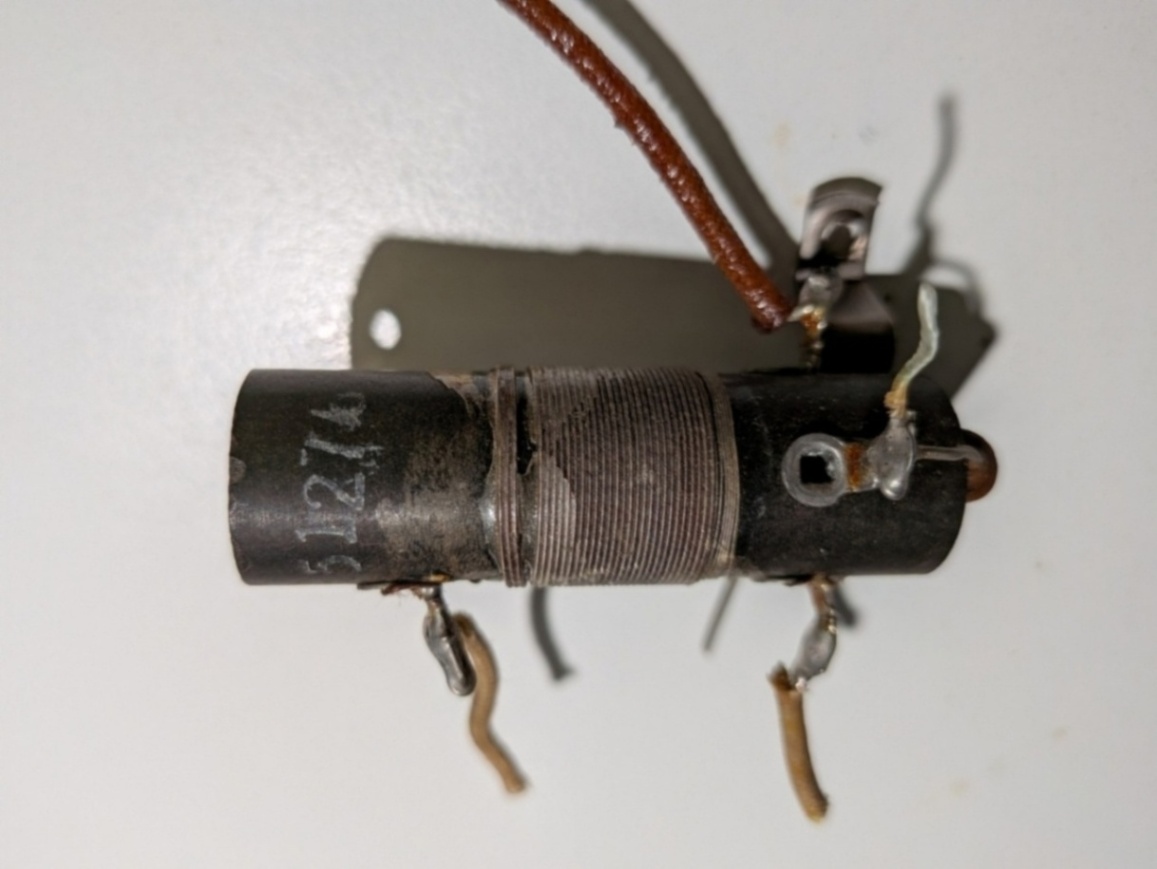

Stamped with part number 51276. I don't have a parts list for the early radios that give anything other than resistors and capacitors.

A diagram identifies this coil as "B3"

		A to B: 0.22 ohm
		C to D: 0.55


Late Radio, Square Coils

Stamped with part number _______.

NOT PHOTOGRAPHED YET

		Winding 1: _____ ohm
		Winding 2: _____
