V2 is in the second RF module. It is a 6SK7 type.
When making pin-to-ground resistance measurements, make SURE the radio is configured like this. To locate tubes, see this.
Resistance measurements made with Simpson 260.
"Open" or "no pin" means the tube does not use the pin but it might have been used as a junction for other components.
Pin to Radio Radio Radio chassis #5 #6 #7 1 0 0 0 2 0 0 0 3 335 9,000 300 4 761,000 245,000 1,300,000 5 335.2 9,000 300 6 2,140 47,000 10,000 7 0 .2 .2 8 3,330 50,000 19,000
Pin to From the chassis docs 1 0 2 0 3 350 4 900,000 5 350 6 12,000 7 0.1 8 18,000

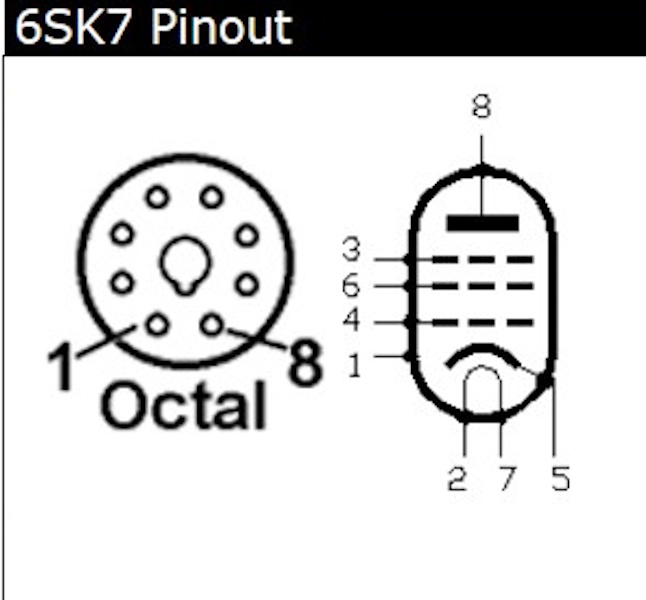

Tube pinout images are found on tdsl.duncanamps.com

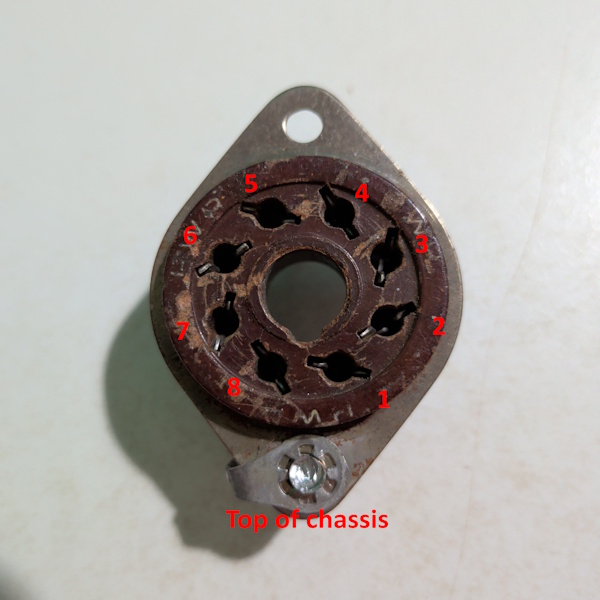

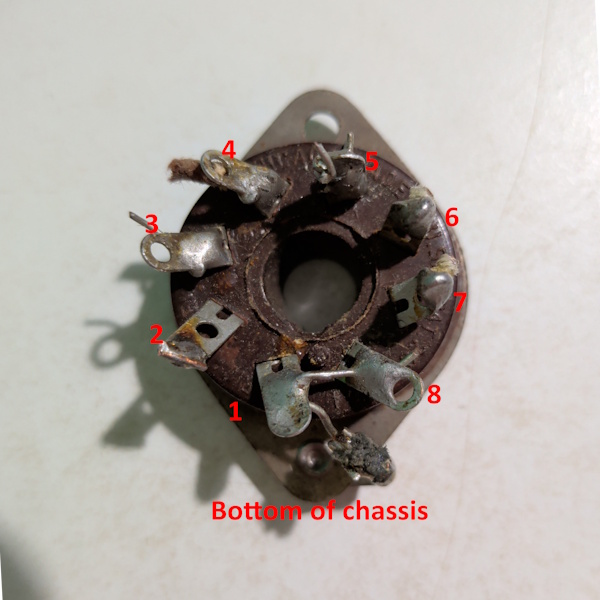

For reference:
