V2 is in the mixer module.
When making pin-to-ground resistance measurements, make SURE the radio is configured like this. To locate tubes, see this.
Resistance measurements made with Simpson 260.
"Open" or "no pin" means the tube does not use the pin but it might have been used as a junction for other components.
Pin to Radio Radio Radio chassis #5 #6 #7 1 0 0 0 2 0 0.4 0 3 18,630 49,000 18,000 4 2,150 49,000 11,000 5 62,400 56,000 50,000 6 436 420 390 7 0 .2 0.2 8 760,000 900,000 900,000
Pin to From the chassis docs 1 0 2 0 3 18,000 4 400,000 5 400,000 6 10,000 7 0.1 8 200

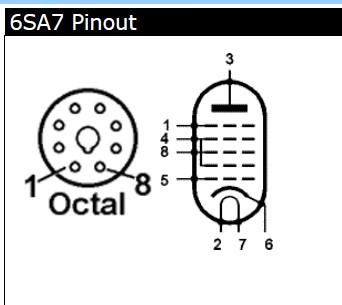

Tube pinout images are found on tdsl.duncanamps.com
For reference:
